The evolution of the Outback trail chassis hits new heights with the new Hi-Rock edition from FTX. As trail and crawler fans continue to crave both scale performance and scale looks, we have looked to address both with the Hi-Rock.

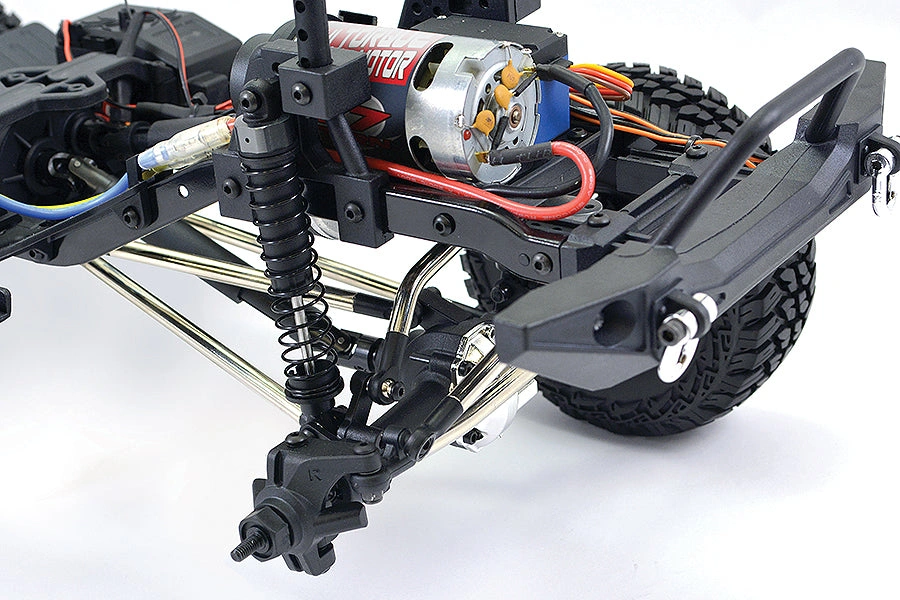

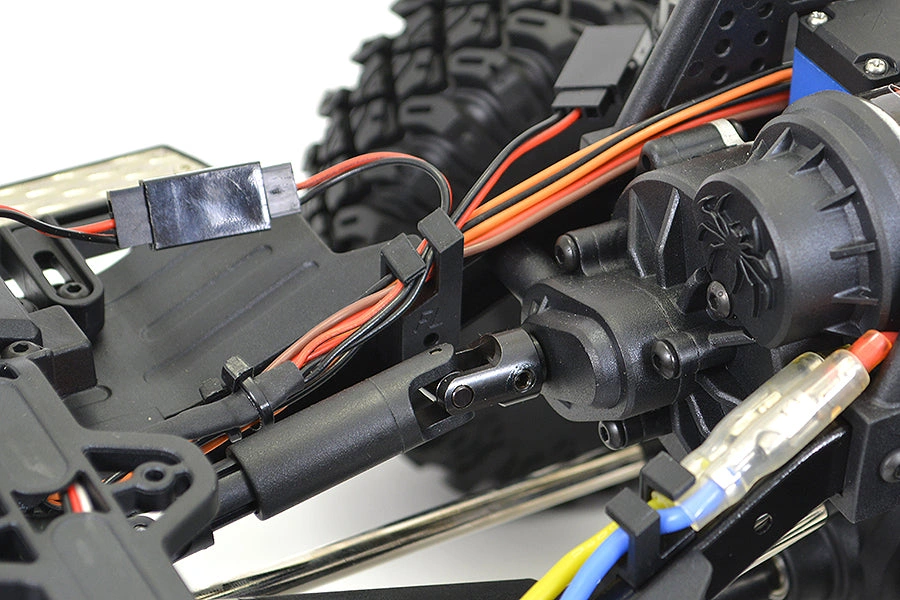

Featuring a new split transmission, the motor is now mounted directly above the front axle alongside the steering servo providing extra weight up front for better traction when climbing ascents. The steering angle has been increased to a 45° angle for further improved trail manoeuvrability. An adjustable drivetrain slipper can be set to protect the transmission and driveshafts in the event of a lock up, while internal axle and gearbox metal gears provide long term durability.

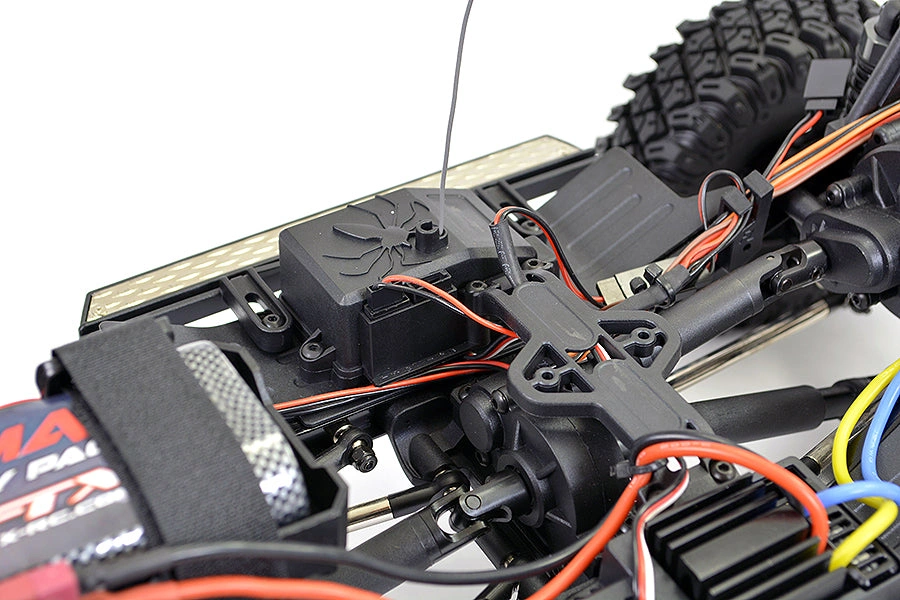

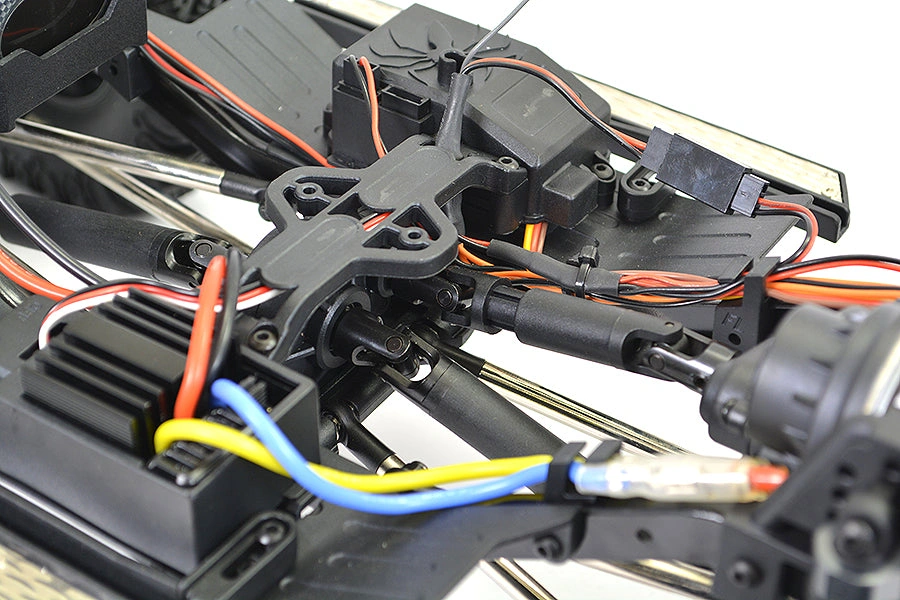

The split transmission layout provides a much lower centre section allowing for aftermarket interiors to be mounted for added scale realism. The moulded side chassis plates have aluminium plates on the exterior while the inner plates provide protection from the elements as well as mounting receiver and Hobbywing speed control. The moulded receiver box features additional plug in ports for LED lights and aftermarket winches.

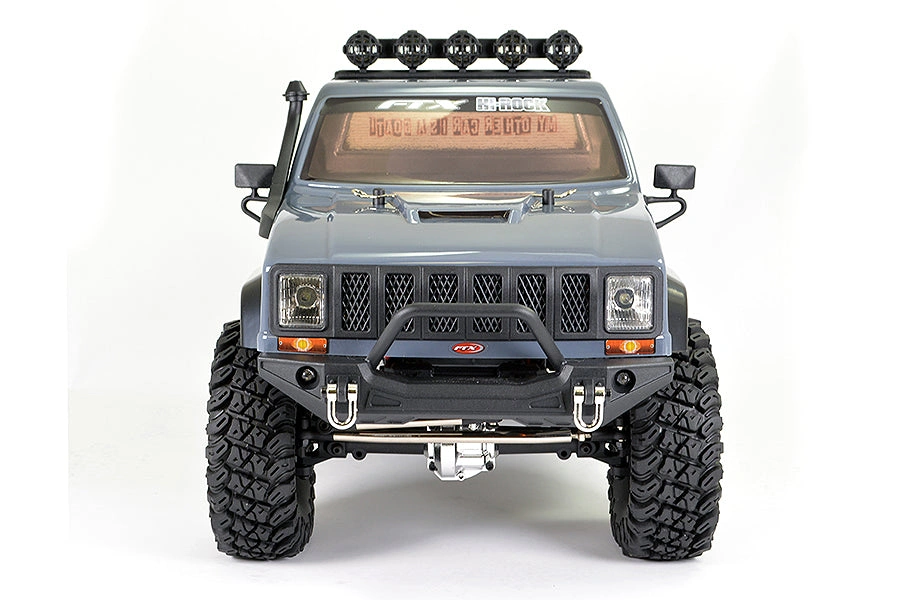

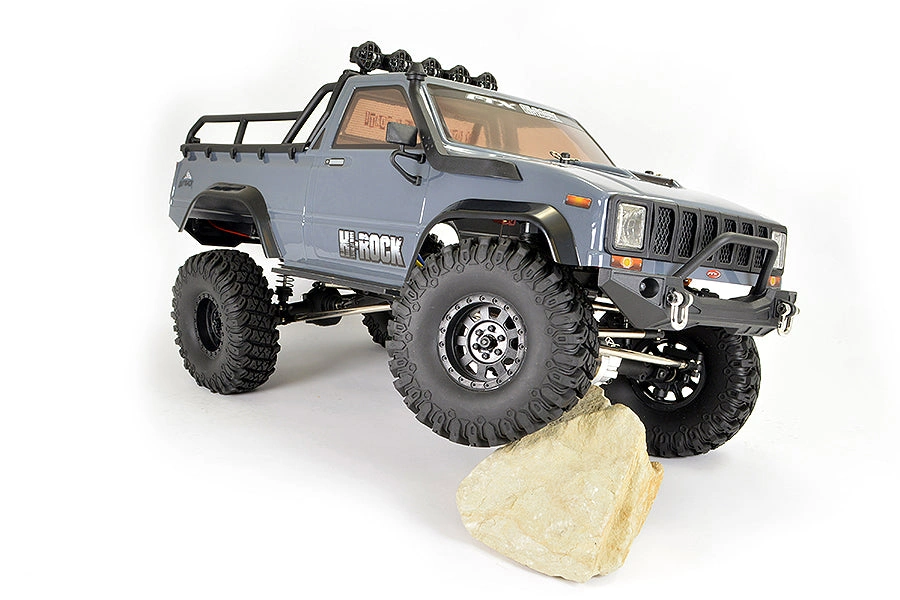

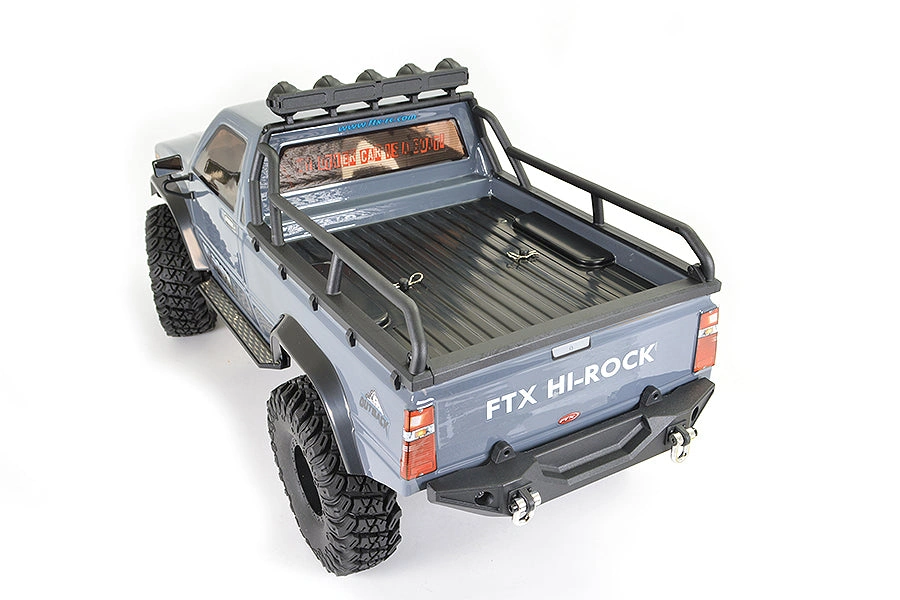

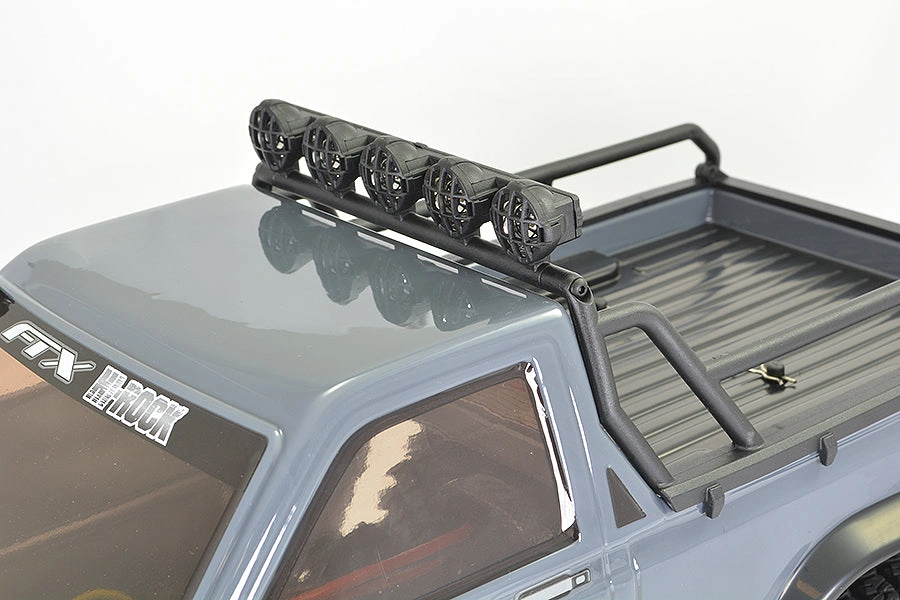

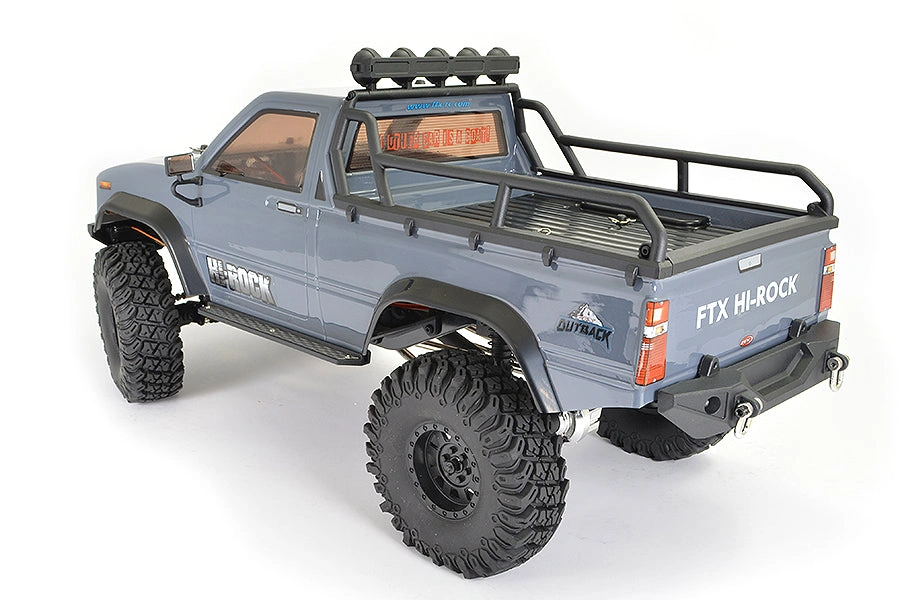

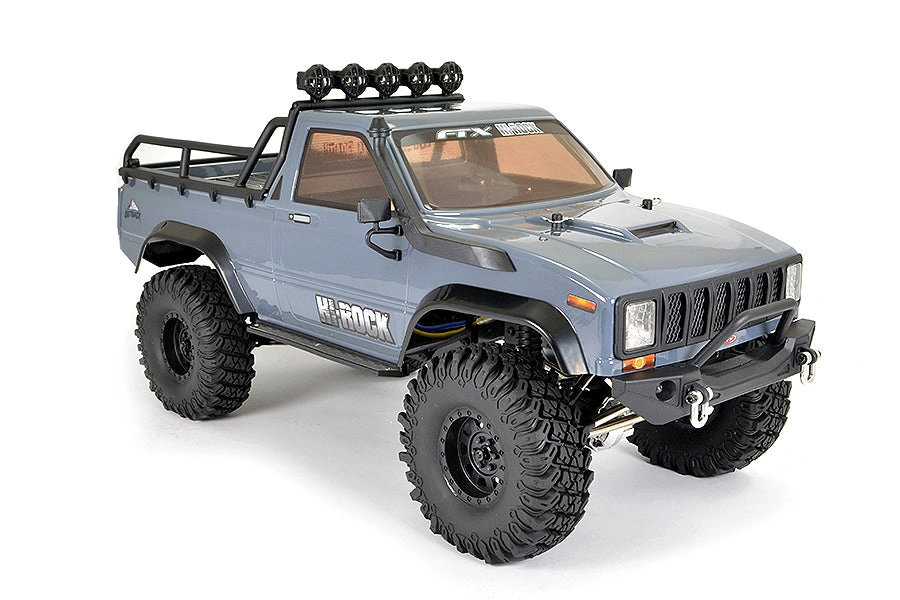

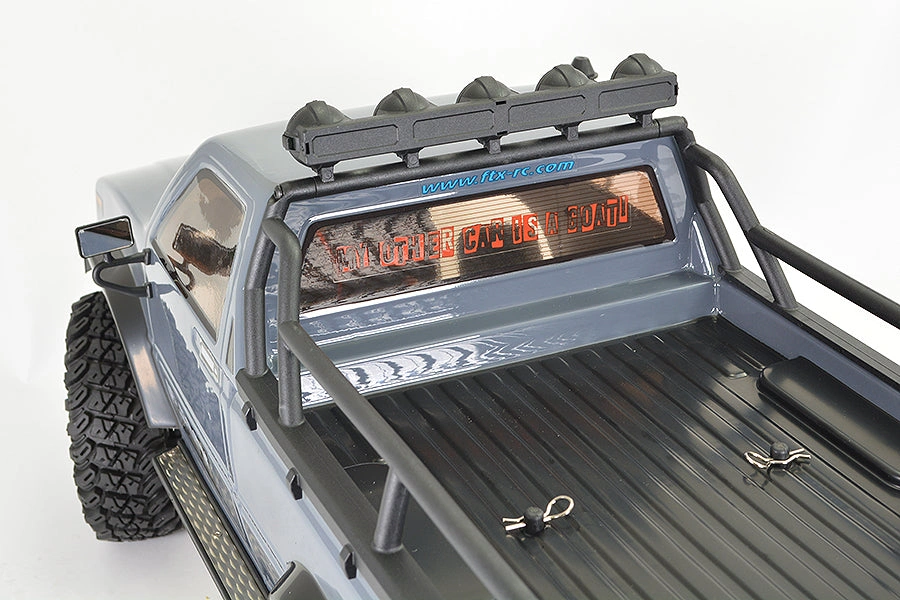

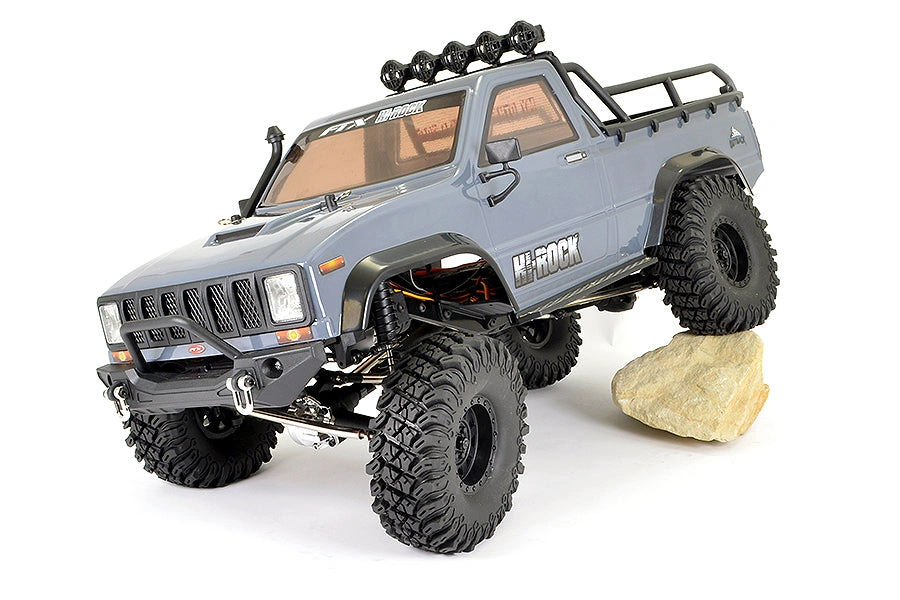

The classic pick-up inspired bodyshell comes complete with moulded accessories such as front grill & LED light buckets, snorkel, mirrors, wipers, roll bar cage and spotlights (for optional LED’s). Front and rear bumpers feature mounted LED lights and tow hooks to top off that scale look.

Take to the trails and raise the bar with the FTX Outback Hi-Rock!

Features:

• 99% Ready-to-Run

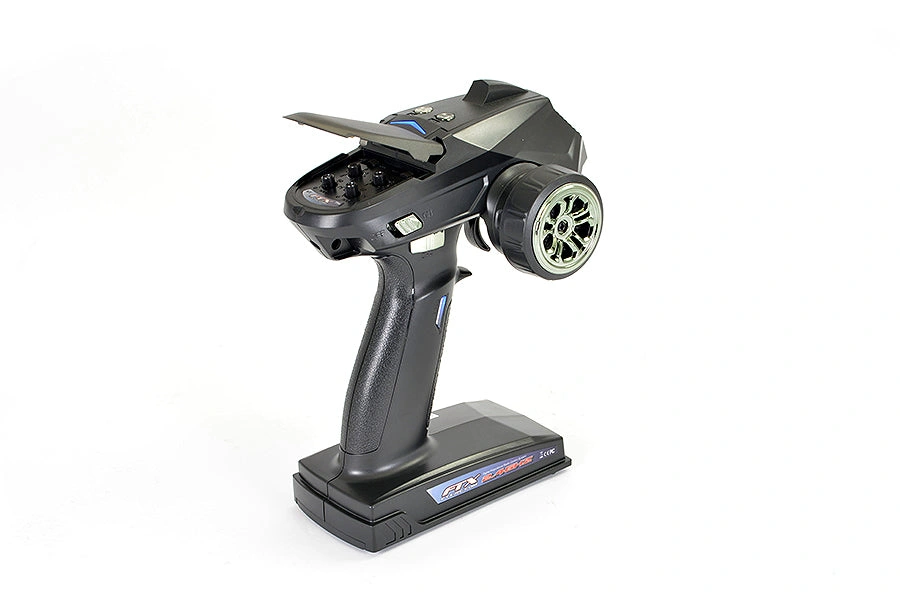

• 4ch 2.4ghz radio for lights & winch options
• Hobbywing HW1040 40A Waterproof ESC
• 15kg metal geared waterproof servo
• 550 brushed 17 Turn motor
• 7.2v 2000mah NiMH battery & charger
• Ball bearings

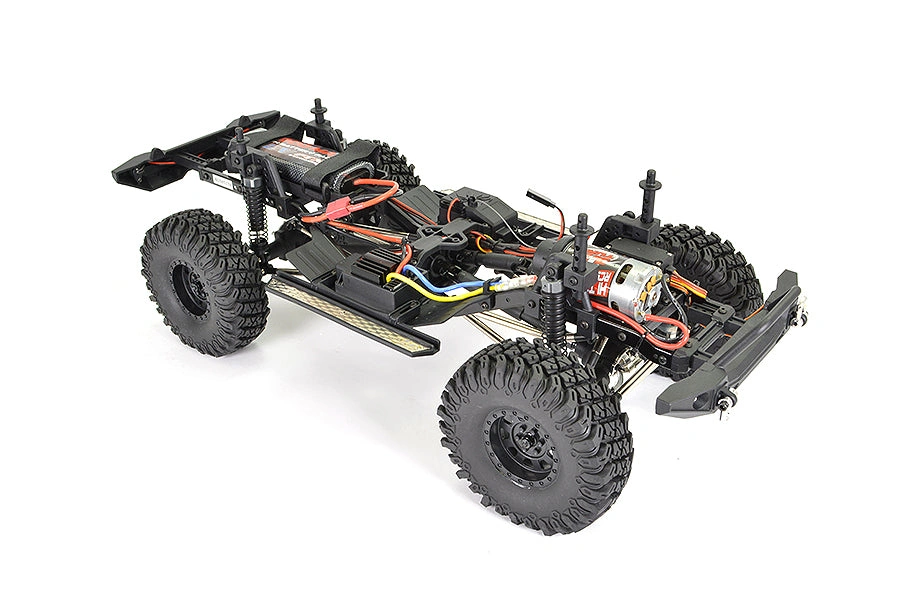

• Twin rail metal frame chassis

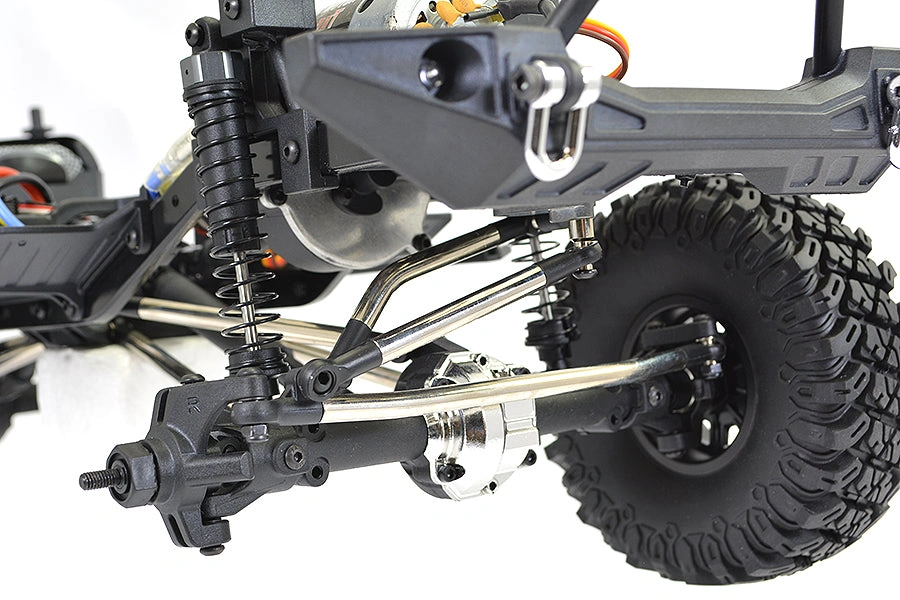

• 6mm steel multi-link suspension
• Telescopic universal driveshafts
• Steel CVA front universal driveshafts
• Oil filled shock absorbers
• Metal axle & transmission gears
• Front & rear high clearance locked axles

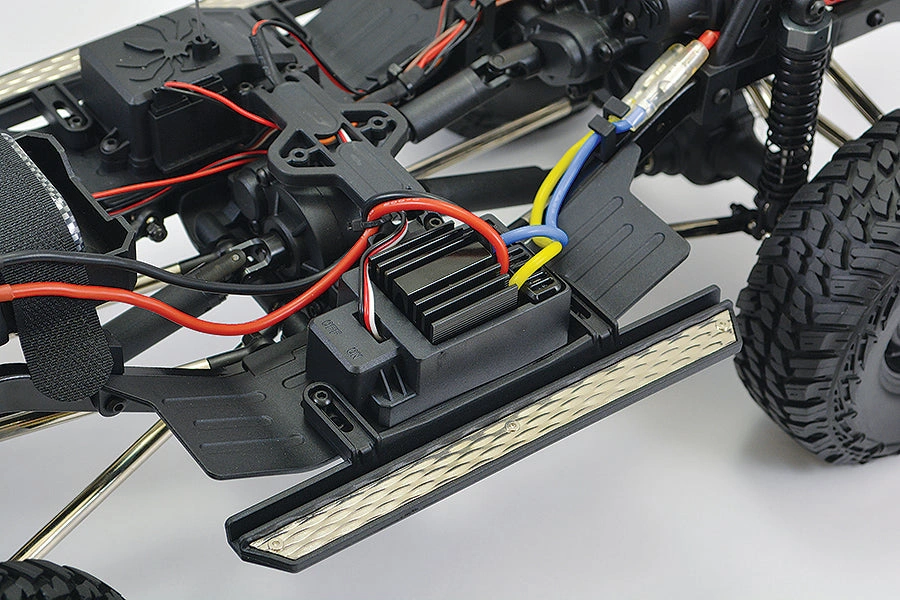

• Adjustable central footplate for ESC & receiver mounting
• Receiver box with external third & forth channel ports for options such as LED, sound module or winch

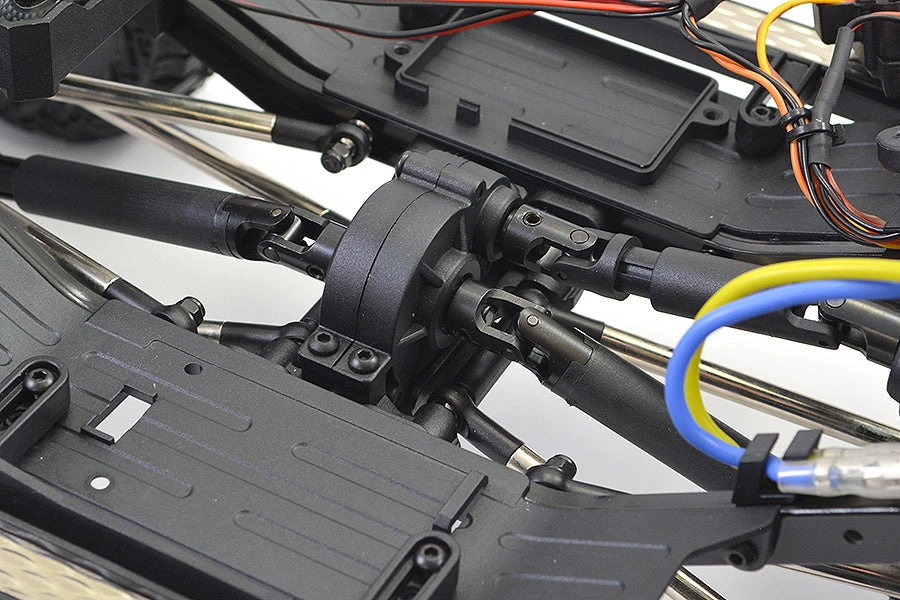

• Split transmission system for better low-speed torque output
• Lower mid section accommodates interiors
• Transmission slipper clutch
• Raised chassis mounted steering servo & panhard bar

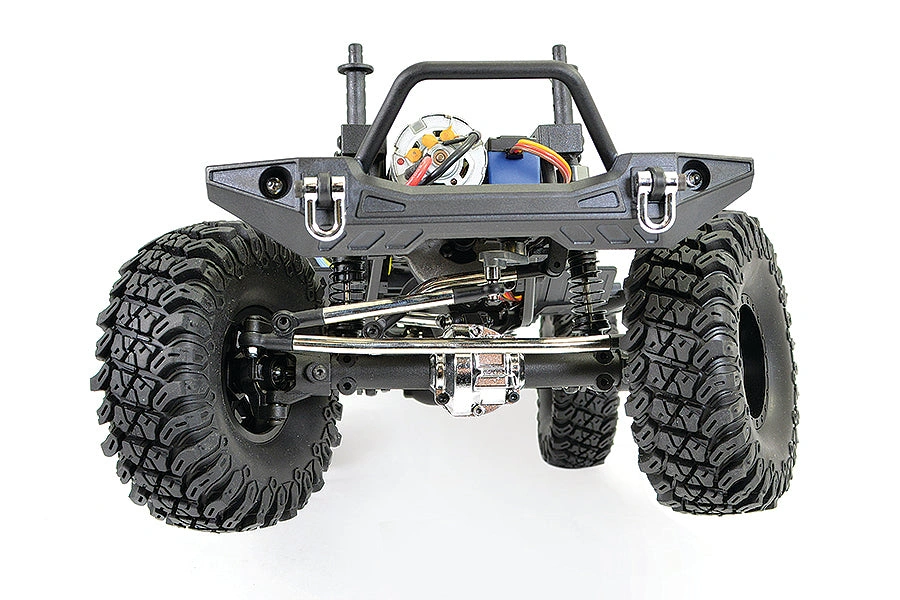

• Front mounted motor for better weight bias
• Scale styled wheels
• High grip all terrain tyres
• Scale looking front & rear bumpers with shackles & factory fitted LED lights
• Scale side metal footplate
• Moulded scale body accessories including snorkel, side mirrors & grill

Specifications:

• Length: 560mm

• Width: 240mm

• Height: 240mm

• Weight: 2600g

• Wheelbase: 313mm

• Gear Ratio: 56.6:1 – 33.3:1

• Tyre Diameter: 120mm

• Wheel Diameter: 54mm

• Ground Clearance: 80mm

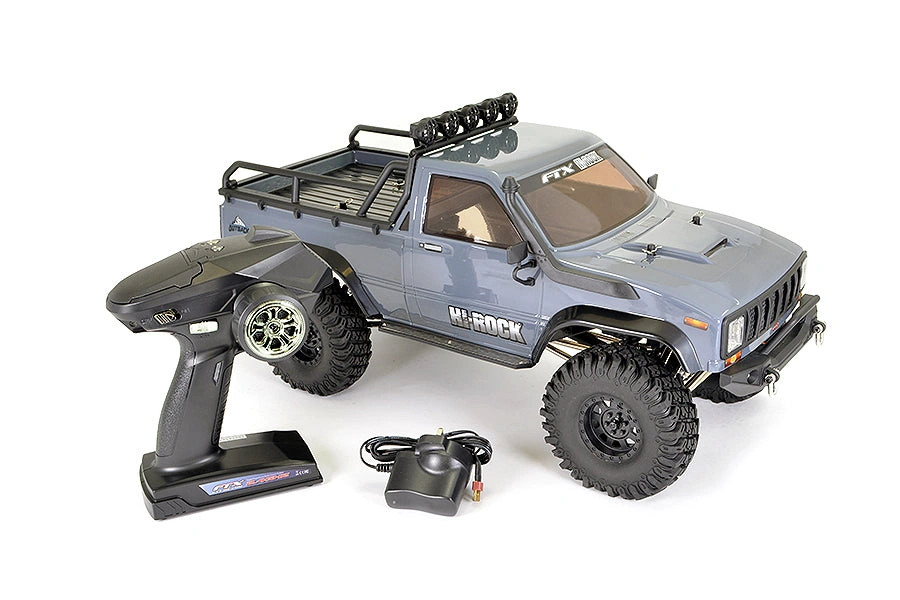

In the Box:

• FTX Outback Hi-Rock 4x4 RTR 1/10 Trail Rock Crawler
• 4ch 2.4ghz radio
• 7.2v 2000mah NiMH battery
• Charger

Required To Run:

• 4x AA batteries for transmitter
